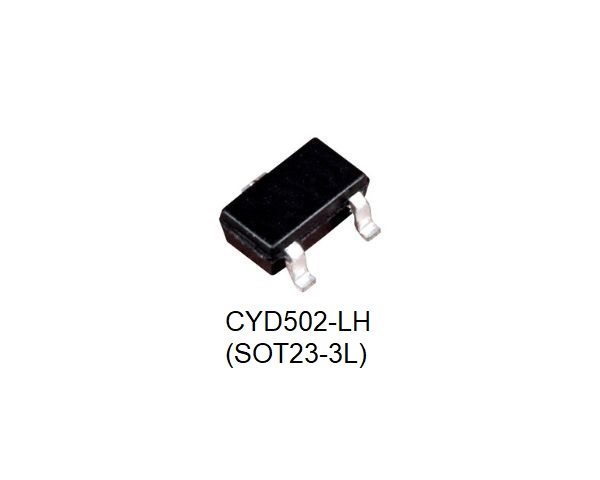

Bipolar Hall Effect Latching Switch Ics CYD502, Power Supply: 2.7V -30V, supply current: 25mA
CYD502 Hall Effect Switch is a monolithic integrated circuit which switches in response to magnetic field. If a magnetic field with flux lines perpendicular to the sensitive area is applied to the sensor, the biased Hall plate forces a Hall voltage proportional to this field. The Hall voltage is compared with the actual threshold level in the comparator. If the magnetic field exceeds the threshold levels, the output stage is switched to the appropriate state. The built-in hysteresis eliminates oscillation and provides switching behavior of output without bouncing.
Applications
Brushless DC motors
Speed measurement
Counting
Angle position detection
Proximity detection
Home applications
Home safety
Features
2.7V to 30V operation voltage
Overvoltage protection capability up to 40 V
High accuracy bipolar switch
Built-in dynamic offset cancellation
Open drain output
Low thermal drift of magnetic sensing
Qualified according to AEC-Q100 test standard
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
