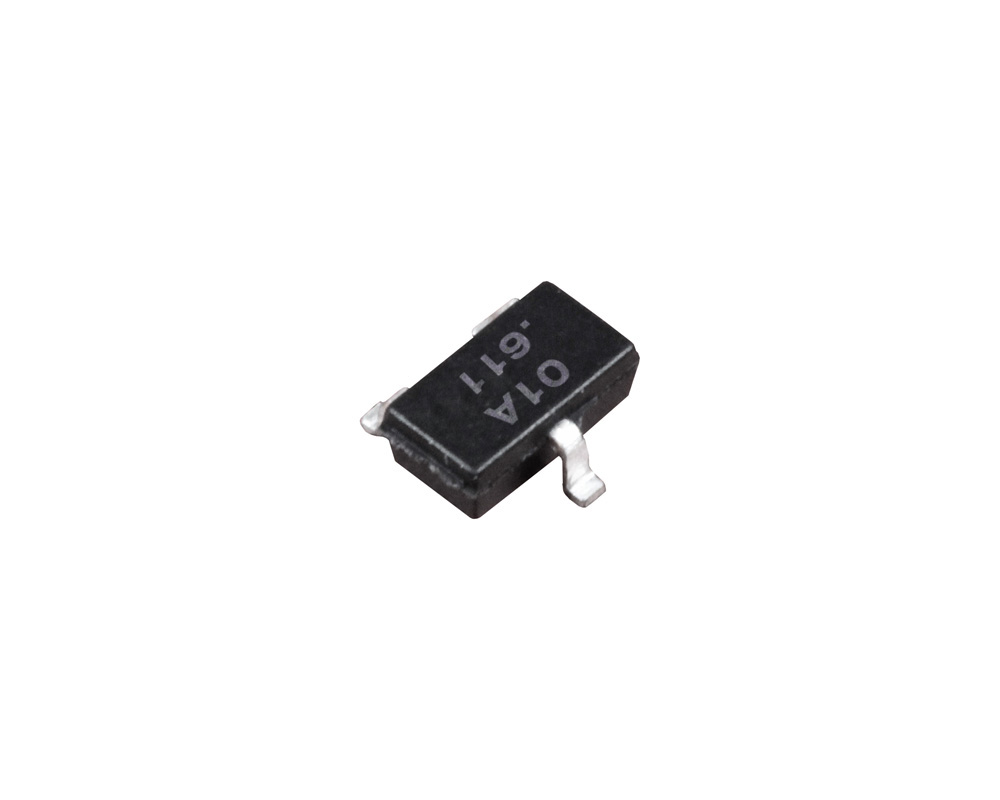

Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA

Characteristics

  • 2.5V to 18V operation voltage
  • Built-in dynamic offset cancellation
  • Small size
  • High balance and low thermal drift of magnetic sensing

Applications

  • DC brushless motors
  • VCD/DVD loader, CD/DVD-Rom
  • Cover detector
  • Speed Measurement
  • Home applications
  • Home safety etc.
Operating Temperature: -40°C ~ +125°C
Max. Supply current/voltage: 25 mA
Operation Point: 1.0 mT ~ 3.5 mT
Release Point: -3.5mT ~ -1.0mT
Hysteresis: 2.0 mT ~ 6.0 mT
Power Supply: 2.5V ~ 18V DC
Package/Size: SOT23/2.9x1.8x1.1mm
