Hall Effect Elements / ICs
We are dedicated to providing you with the highest quality products suited to your needs.
To find the Hall Elements / ICs that fit your technical specifications the best, we highly recommend using the filter function or our product subcategories.
Serial: CYD511
Operating point:
8mT
Release Point:
10mT
Supply Voltage:
2.7V ~ 30V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYD402F
Operating point:
1.0mT ~ 4.0mT
Release Point:
-4.0mT ~ -1.0mT
Supply Voltage:
3.8V ~ 60V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYD501
Operating point:
0.9mT
Release Point:
-0.9mT
Supply Voltage:
2.7V ~ 30V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYD502
Operating point:
2.5mT
Release Point:
-2.5mT
Supply Voltage:
2.7V ~ 30V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYD505
Operating point:
13.5mT
Release Point:
-13.5mT
Supply Voltage:
2.7V ~ 30V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYL810P
Max. Sensitivity:
36.5 ~ 293.0 mV/mT (programmable)
Linearity:
0.1%
Measuring range:
0~200mT, 0~2000 Gs
Operating temperature:
-40°C ~ +125°C
Package/Size:
TO94/5.13x3.6x1.6mm
Serial: CYL601
Max. Sensitivity:
9.0 ~ 15.0 mV/mT
Linearity:
±1.0%
Measuring range:
0~125 mT, 0~1250 Gs
Operating temperature:
-40°C ~ +150°C"
Package/Size:
SOT23 or TO92
Serial: CYL602
Max. Sensitivity:
22.0 ~ 28.0 mV/mT
Linearity:
±1.0%
Measuring range:
0~60 mT, 0~600 Gs
Operating temperature:
-40°C ~ +150°C"
Package/Size:
SOT23 or TO92
Serial: CYL603
Max. Sensitivity:
27.5 ~ 35.0 mV/mT
Linearity:
±1.0%
Measuring range:
0~46 mT, 0~460 Gs
Operating temperature:
-40°C ~ +150°C"
Package/Size:
SOT23 or TO92

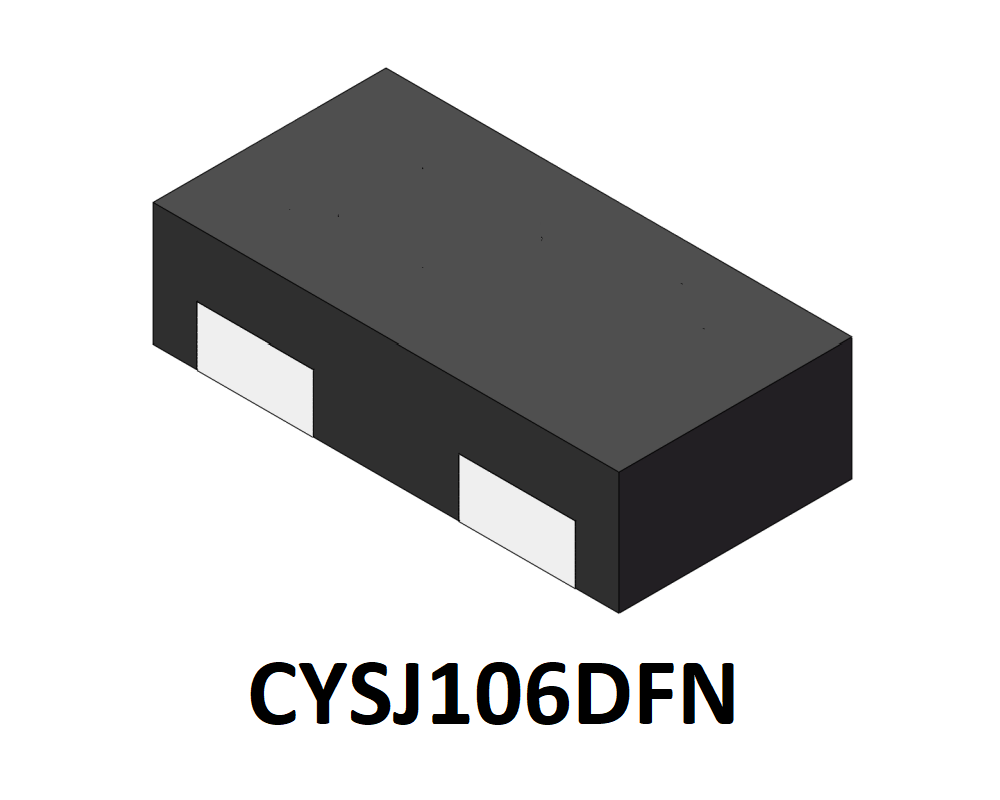

Serial: CYSJ106DFN
Max. Sensitivity:
1.80 ~ 2.4 mV/mT
Linearity:
2.0 %
Measuring range:
0~3 T, 0~30000 Gs
Operating temperature:
-40°C ~ +125°C
Package/Size:
DFN/1.2x0.5x0.3mm
Serial: CYL605
Max. Sensitivity:
47.0 ~ 53.0 mV/mT
Linearity:
±1.0%
Measuring range:
0~30 mT, 0~300 Gs
Operating temperature:
-40°C ~ +150°C"
Package/Size:
SOT23 or TO92
