Current Sensors
We are dedicated to providing you with the highest quality products suited to your needs.
Current Sensing is an important process for the evaluation, control, and diagnosis of electrical systems and thus are essential in many application fields. Hall Effect Current Sensors have been widely used for this purpose. They are a reliable solution for non-contact current measurement with high accuracy. The galvanic isolation between the sensor and current guarantees a high degree of safety. Furthermore, Hall Effect Current sensors have a simple structure and low energy losses.
A comprehensive introduction to Hall Effect Current Sensor you find here.
To find the Current Sensors, that fit your technical specifications the best, we highly recommend using the filter function and the product subcategories.
Serial: CYHCTD-S3
Rated Input Current:
0 ~ ±25A to 0 ~ ±300A DC
Analogue Output:
0~5V DC or 0~10V DC (±0.5% ~ ±1%)
Digital Output:
Current I (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm
Serial: CYCT03-xnS3
Rated Input Current:
0 ~ ±20mA to 0 ~ ±30A DC
Output Signal:
0~10V DC, 4~20mA DC, Frequency OC etc.
Power Supply:
+12V ,+15V or +24V DC
Window Size:
Ø 20 mm
Accuracy / Response Time:
1.0% / ≤400ms
Serial: CYCT02-xnU0
Rated Input Current:
0 ~ +1mA to 0 ~ +5A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
+12V or +24V DC
Mounting:
DIN Rail
Accuracy / Response Time:
0.2%, 0.5% (see Datasheet) /≤350ms
Serial: CYCT04-xnMS20A
Rated Input Current:
0 ~ ±10mA to 0 ~ ±100mA DC
Rated Output Voltage:
tracing ±5VDC or 0~5V DC
Power Supply:
±12V DC or ±15VDC
Accuracy:
1.0%
Window Size:
Ø 20 mm
Serial: CYHCT-BTV
Rated Input Current:
0~±50A to 0~±600A DC
Rated Output Voltage:
0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply:
+12V DC,+15V DC or +24V DC
Window Size:
20.5x10.5mm
Connector:
Molex
Serial: CYHCT-FV-B200A-84
Rated Input Current:
0~±200A to 0~±2000A DC
Rated Output Voltage:
0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply:
+12V DC,+15V DC or +24V DC
Window Size:
41x14 mm
Connector:
Molex
Serial: CYHCT-FAV
Rated Input Current:
0~±300A to 0~±2000A DC
Rated Output Voltage:
0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply:
+12V DC,+15V DC or +24V DC
Window Size:
51x13 mm
Connector:
Molex
Serial: CYHCT-K104V
Rated Input Current:
0~±500A to 0~±5000A DC
Rated Output Voltage:
0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply:
+12V DC,+15V DC or +24V DC
Window Size:
104 x 36 mm (Split Core)
Connector:
Molex or Screw
Serial: CYHCS-BTV
Rated Input Current:
0~±50A to 0~±600A AC
Rated Output Voltage:
0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply:
+12V DC,+15V DC or +24V DC
Window Size:
20.5x10.5mm
Connector:
Molex
Serial: CYCT01-xnU0
Rated Input Current:
0 ~ +1mA to 0 ~ +5A DC
Output Signal:
0~5V DC, 0~10V DC, 4~20mA DC etc.
Power Supply:
+12V DC or +24V DC
Mounting:
DIN Rail
Accuracy / Response Time:
0.2% (V_out); 0.5% (I_out) / ≤350ms
Serial: CYHCD-S3
Rated Input Current:
0 ~ 25A to 0 ~ 300A AC/DC
Analogue Output:
2.5V DC ± 2.5V AC/DC or 5V DC ± 5VAC/DC
Digital Output:
Current I or Frequency F (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm
Serial: CYCT03-xnWS3
Rated Input Current:
0 ~ ±5mA to 0 ~ ±25A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
+12V ,+15V or +24V DC
Window Size:
Ø 20 mm
Accuracy / Response Time:
±1.0% / ≤120ms
Serial: CYHCTD-S3K
Rated Input Current:
0 ~ ±25A to 0 ~ ±500A DC
Analogue Output:
0~5V DC or 0~10V DC (±0.5% ~ ±1%)
Digital Output:
Current I (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm (Split core)
Serial: CYHCSD-S3K
Rated Input Current:
0 ~ 25A to 0 ~ 500A AC
Analogue Output:
2.5VDC ± 2.5VAC or 5VDC ± 5VAC (±0.5%~±1%)
Digital Output:
Current I or Frequency F (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm (Split core)
Serial: CYHCD-S3K
Rated Input Current:
0 ~ 25A to 0 ~ 500A AC/DC
Analogue Output:
2.5V DC ± 2.5V AC/DC or 5V DC ± 5VAC/DC
Digital Output:
Current I or Frequency F (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm (Split core)
Serial: CYHCS-EKC
Rated Input Current:
0~±30A to 0~±300A AC/DC
Rated Output Voltage:
0~±4V or 0-±5V AC/DC ±1.0%
Power Supply:
±12V~±15V DC
Window Size:
Ø12mm (Split Core)
Connector:
Molex
Serial: CYHCT-L35K
Rated Input Current:
0~±50A to 0~±1000A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
+12V DC,+15V DC or +24V DC
Window Size:
Ø35 mm (Split Core)
Connector:
Molex, Phoenix or Cable
Serial: CYHCT-L21K
Rated Input Current:
0~±50A to 0~±1000A DC
Output Signal:
0~±5V, 0~±10V or 0~±20mA DC
Power Supply:
+12V, +15V or +24V DC
Window Size:
Ø35 mm (Split Core)
Connector:
Molex, Phoenix or Cable

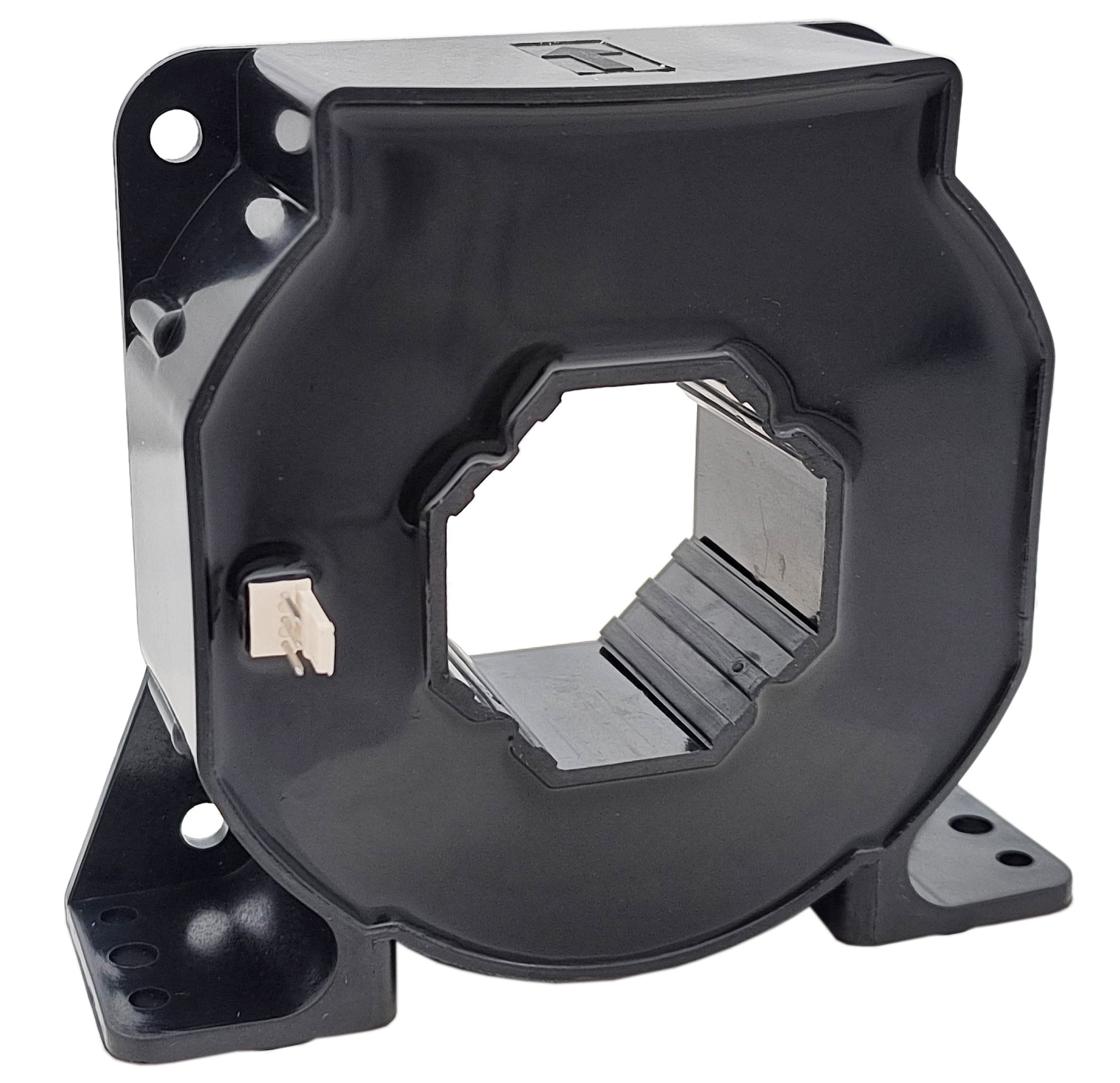

Serial: CYHCS-LFA-1000A
Rated Input Current:
0~±1000A AC/DC
Rated Output Current:
±200mA AC/DC
Power Supply:
±15V ~ ±24V DC
Window Size:
Ø 40.2 mm
Accuracy / Linearity:
0.3% / 0.1%

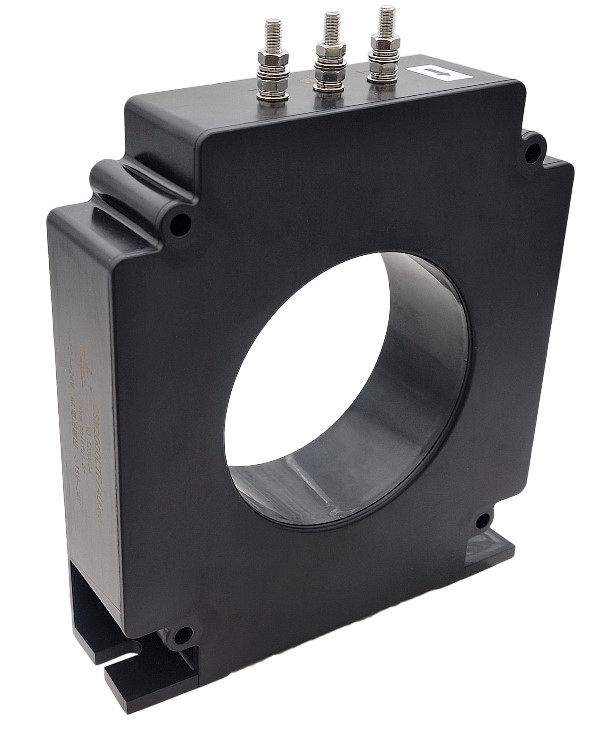

Serial: CYHCS-LTF
Rated Input Current:
0~±1000A to 0~±3000A AC/DC
Rated Output Current:
0~±200 mA, 0~±400mA or 0~±600mA AC/DC
Power Supply:
±15V ~ ±24V DC
Window Size:
Ø 120 mm
Accuracy / Linearity:
0.3% / 0.1%
Serial: CYHCS-D6M
Rated Input Current:
0~±300A or 0~±500A AC/DC
Rated Output Current:
0 ~ ±100 mA AC/DC
Power Supply:
±15V ~ ±24V DC
Window Size:
Ø 35 mm
Accuracy / Linearity:
0.5% / 0.1%

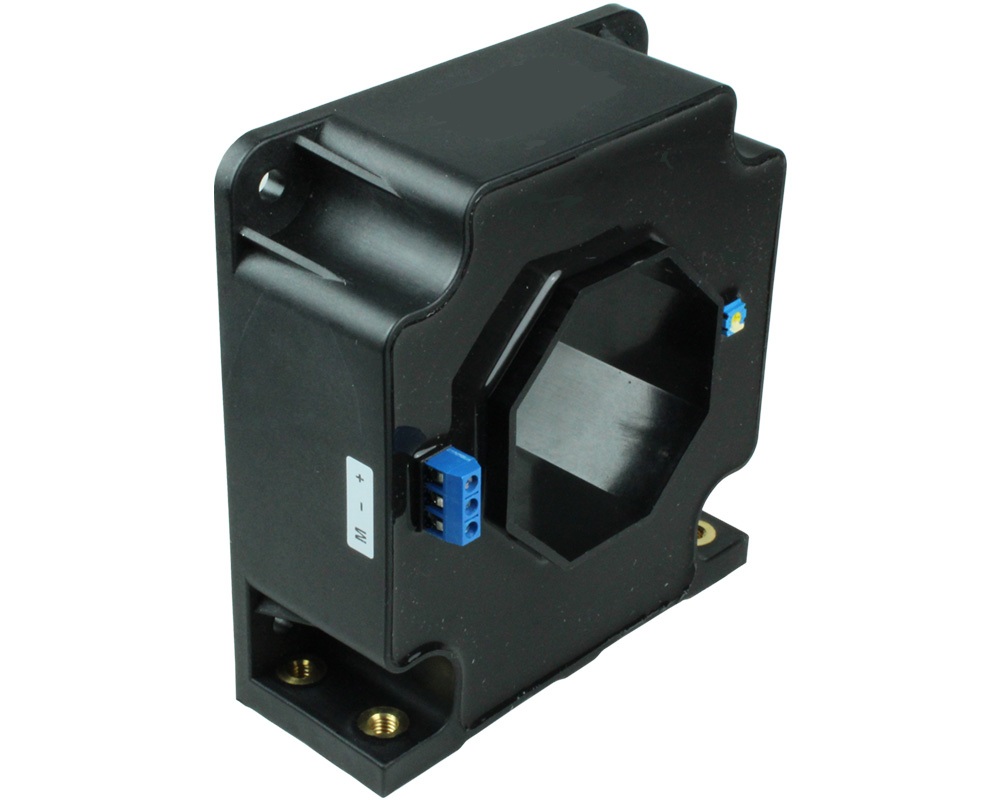

Serial: CYHCS-LF-X
Rated Input Current:
0~±1000A to 0~±2000A AC/DC
Output signal:
0~±4V, 0~±5V, 0~±20mA or 0~±40mA AC/DC
Power Supply:
±15V ~ ±24V DC
Window Size:
Ø 60.5 mm
Accuracy / Linearity:
0.2% / 0.1%
Serial: CYHCT-L21K
Rated Input Current:
0~25A to 0~500A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
+12V, +15V or +24V DC
Window Size:
Ø21mm (Split Core)
Connector:
Molex or Phoenix

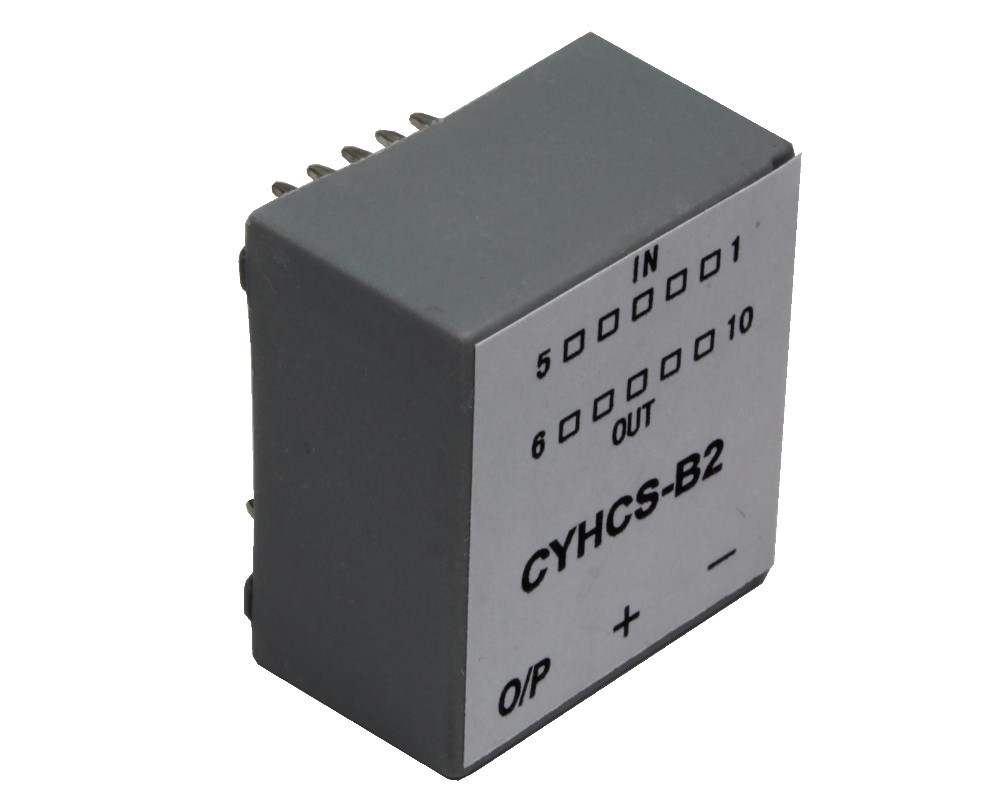

Serial: CYHCS-B2
Rated Input Current:
0~±5A to 0~±25A AC/DC
Rated Output Current:
0 ~ 25 mA AC/DC
Power Supply:
±15 V DC
Accuracy / Linearity:
0.5% / 0.2%
Operating Temperature:
-25°C ~ +85°C

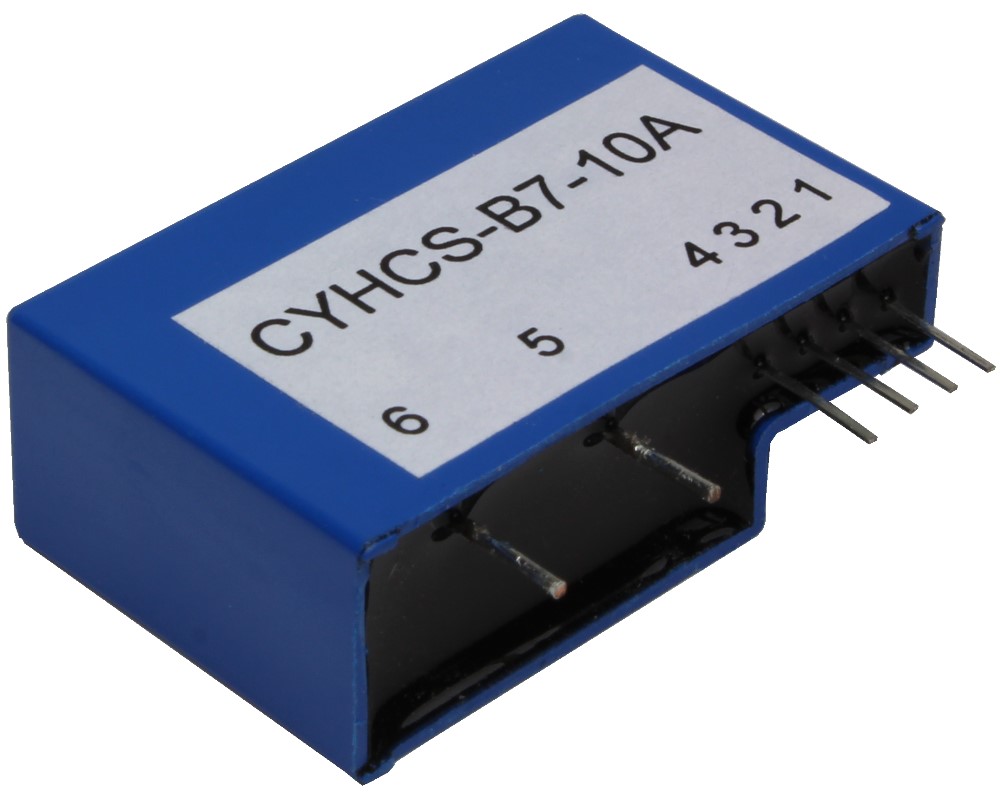

Serial: CYHCS-B7
Rated Input Current:
0~±5A to 0~±75A AC/DC
Rated Output Voltage:
0~±4V AC/DC
Power Supply:
±15V DC
Accuracy / Linearity:
0.5% / 0.1%
Operating Temperature:
-25°C ~ +85°C

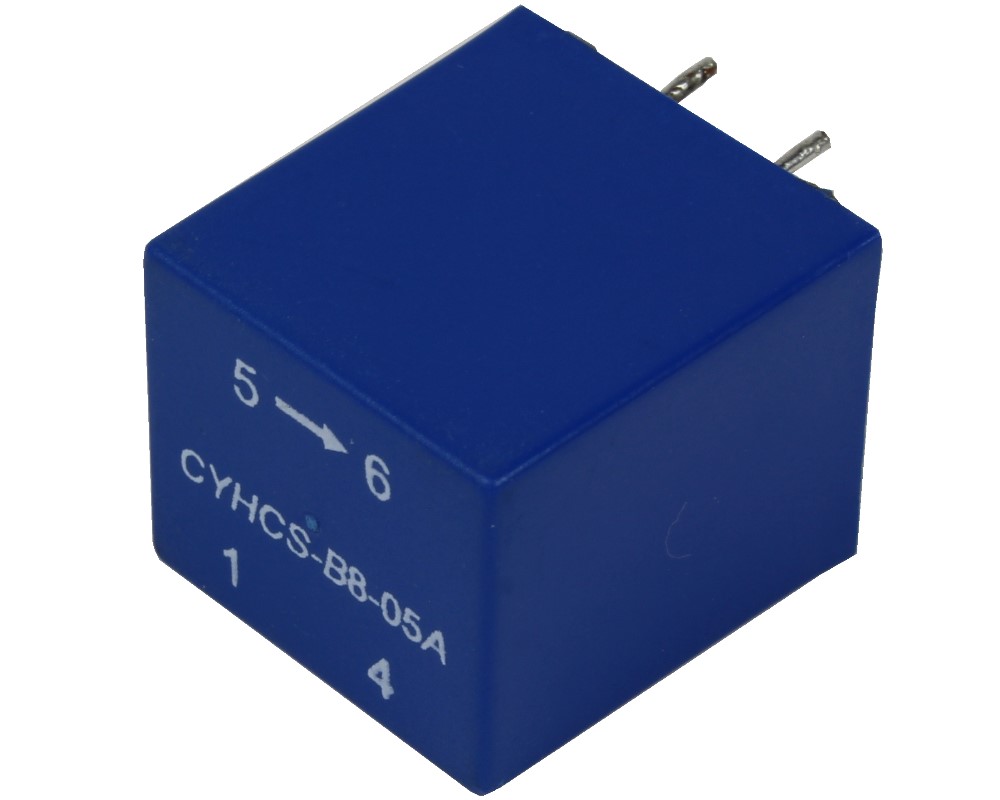

Serial: CYHCS-B8
Rated Input Current:
0~±5A to 0~±50A AC/DC
Rated Output Voltage:
0~±4V AC/DC
Power Supply:
±15 V DC
Accuracy / Linearity:
0.5% / 0.1%
Operating Temperature:
-25°C ~ +85°C

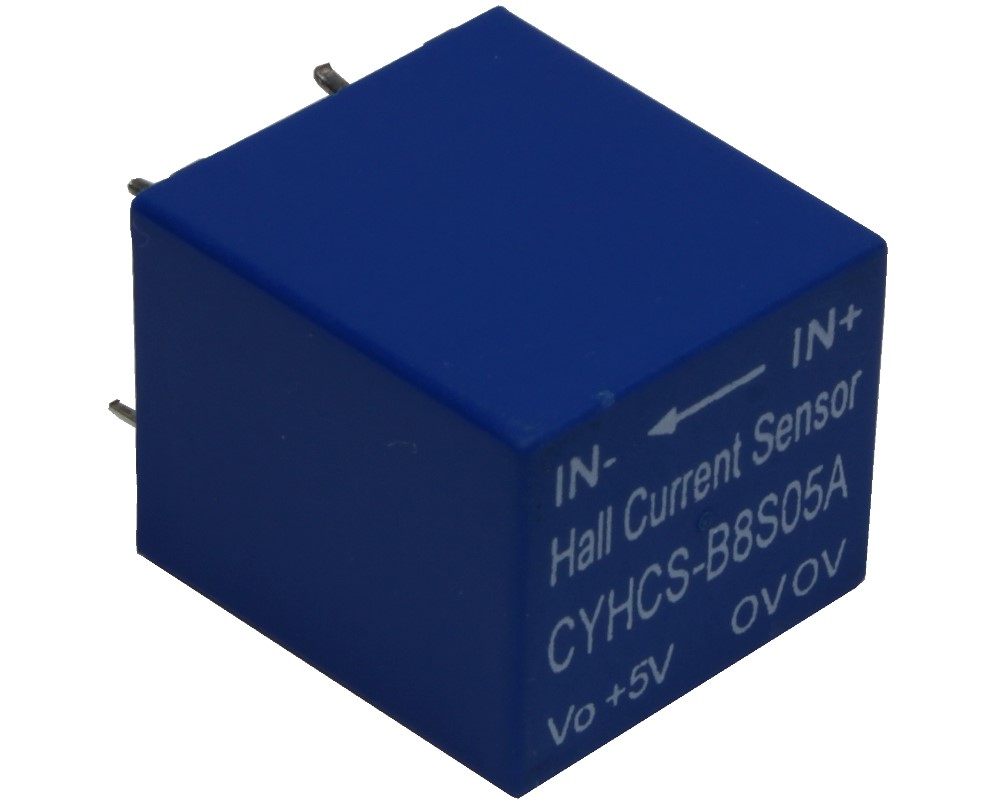

Serial: CYHCS-B8S
Rated Input Current:
0~±5A to 0~±25A AC/DC
Rated Output Voltage:
2.5V±0.625V AC/DC
Power Supply:
+5 V DC
Accuracy / Linearity:
0.5% / 0.1%
Operating Temperature:
-25°C ~ +85°C

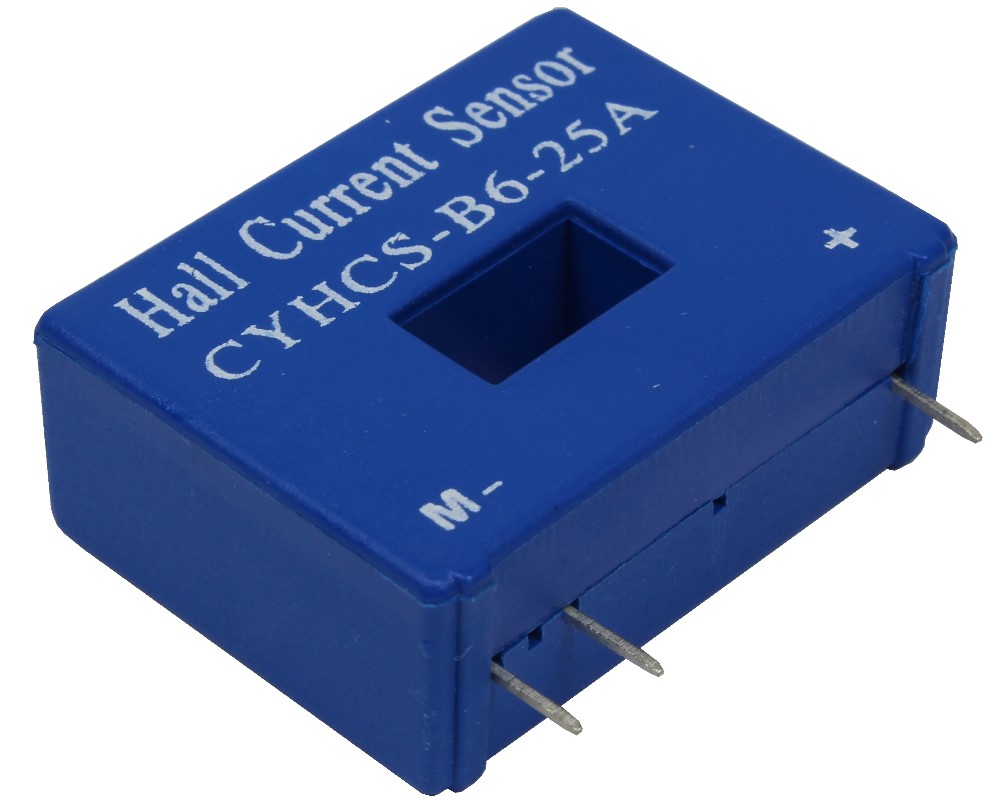

Serial: CYHCS-B6
Rated Input Current:
0~±25A to 0~±100A AC/DC
Rated Output Current:
0~±25mA or 0~±50 mA AC/DC
Power Supply:
±12V ~ ±15V DC
Window Size:
12.7 x 7 mm
Accuracy / Linearity:
0.5% / 0.1%
Serial: CYHCS-B9
Rated Input Current:
0~±125A or 0~±200A AC/DC
Rated Output Current:
0~±100mA or 0~±125 mA AC/DC
Power Supply:
±15 V DC
Window Size:
15.2 x 10.2 mm
Accuracy / Linearity:
0.5% / 0.1%
